Toolchains

Toolchains are the backbone of experiments within the BEAT framework. They determine the data flow for experiments in BEAT.

You can see an example toolchain for a toy eigenface system on the image below.

_images/eigenfaces.png

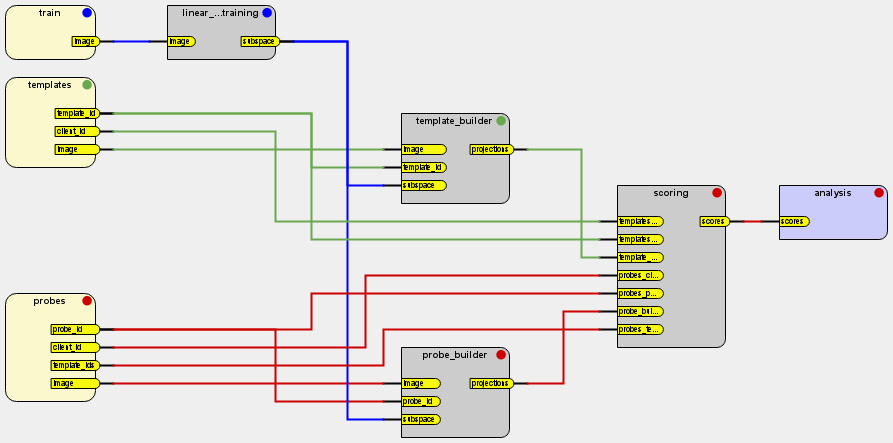

Fig. 8 A complete toolchain that train and test an Eigenfaces system

From this block diagram, the framework can identify all it requires to conduct an experiment with this workflow:

  • There are three types of blocks:

    1. Dataset blocks (light yellow, left side): are the input blocks of a toolchain. They only have outputs.

    2. Regular blocks (gray): represent processing steps of the toolchain.

    3. Analysis blocks (light blue, right side): is the output of a toolchain. They only have inputs.

  • Each block defines place holders for datasets and algorithms to be inserted when the user wants to execute an experiment based on such a toolchain (see the Experiments section).

  • Each block is linked to the next one via a connection. The sequence of blocks in a toolchain and their connectivity defines a natural data flow. Data is output by data sets on the left and flow to the right until a result is produced.

  • Each dataset block (light yellow, left side) define a unique synchronization channel, which is encoded in BEAT via a color. For example, the sychronization channel train is blue. The synchronization channel templates is green and, finally, the synchronization channel probes is red.

  • Each regular or analysis block on the toolchain respects exactly one of these synchronization channels. This is indicated by the colored circle on the top-right of each block. For example, the block called scoring is said to be synchronized with the probes channel.

    When a block is synchronized with a channel, it means the platform will iterate on that channel contents when calling the user algorithm on that block. For example, the block linear_(machine)_training, on the top left of the image, following the data set block train, is synchronized with that dataset block. Therefore, it will be executed as many times as the dataset block outputs objects through its image output. I.e., the linear_machine_training block loops or iterates over the train data.

Notice, the toolchain does not define what an image will be. That is defined by the concrete dataset implementation chosen by the user when an experiment is constructed. The block linear_machine_training also does not define which type of images it can input. That is defined by the algorithm chosen by the user when an experiment is constructed. For example, if the user chooses a data set that outputs objects with the data format system/array_2d_uint8/1 objects then, an algorithm that can input those types of objects must be chosen for the block following that dataset. Don’t worry! BEAT experiment configuration will check that for you!

The order of execution can also be abstracted from this diagram. We sketched that for you in this overlay:

_images/eigenfaces-ordered.svg

The backend processing farm will first “push” the data out of the datasets. It will then run the code on the block linear_machine_training (numbered 2). The blocks template_builder and probe_builder are then ready to run. The BEAT framework may choose to run them at the same time if enough computing resources are available. The scoring block runs by fourth. The last block to be executed is the analysis block. In the figure above, you can also see marked what is the channel data in which the block loops on. When you read about Experiments, you’ll understand, concretely, how synchronization is handled on algorithm code.

Note

Naming Convention

Toolchains are named using three values joined by a / (slash) operator:

  • username: indicates the author of the toolchain

  • name: indicates the name of the toolchain

  • version: indicates the version (integer starting from 1) of the toolchain

Each tuple of these three components defines a unique toolchain name inside the framework.

Declaration of a toolchain

The declaration of a toolchain defines:

  • a collection of processing blocks, including for each of them:

    • a name (unique in the toolchain)

    • a list of inputs

    • a list of outputs

  • the interconnections between those blocks (from an output to an input)

  • a list of datasets, that yield raw input data for the experiment

  • a list of result outputs, that produce the results of the experiment

A toolchain is declared in a JSON file, and must contain at least the following fields:

{
    "datasets": [
    ],
    "blocks": [
    ],
    "connections": [
    ],
    "analyzers": [
    ]
}

Note that this toolchain is considered as a correct one by the system (i.e. it doesn’t contain any error, and thus can be modified via the graphical interface), but not as an executable one, as there is nothing to execute.

For display purposes, the JSON file may contain an additional field called representation, which provides insight on how to display the workflow in a graphical way.

The graphical interface of BEAT provides user-friendly editors to configure the main components of the system (for example: toolchains, data formats, etc.), which simplifies their JSON declaration definition. One needs only to declare a toolchain using the described specifications when not using this graphical interface.

Declaration of the datasets

Datasets are starting points of a toolchain. They provide raw input data for a scientific experiment, and they have, hence, outputs but no input. Several datasets are typically attached to a given a protocol of a database, each of them having a particular role. For instance, a protocol for a classification task may provide three distinct datasets, one for training a generic model, one for enrolling class-specific models, and one for generating probe samples that are compared against the enrolled models.

To define the dataset, its name as well as its corresponding outputs have to be defined in the JSON declaration of the toolchain. Considering the example mentioned above, this would look like:

{
    ...
    "datasets": [
            {
                "outputs": [
                    "image",
                    "eye_centers"
                ],
                "name": "train"
            },
            {
                "outputs": [
                    "template_id",
                    "client_id",
                    "image",
                    "eye_centers"
                ],
                "name": "templates"
            },
            {
                "outputs": [
                    "probe_id",
                    "client_id",
                    "template_ids",
                    "image",
                    "eye_centers"
                ],
                "name": "probes"
            },
      ...
}

Declaration of the processing blocks

To define the processing blocks contained in a toolchain, just add some entries into the blocks array, such as:

{
    ...
    "blocks": [
        {
            "inputs": [
                "image",
                "eye_centers"
            ],
            "synchronized_channel": "train",
            "name": "cropping_rgb_train",
            "outputs": [
                "image_gray"
            ]
        }
    ]
    ...
}

Here we defined a block named cropping_rgb_train, which expects two inputs, image and eye_centers, and returns one output, image_gray. The synchronization channel indicates against which dataset the outputs are synchronized. However, the toolchain does specify neither the data format of the inputs and outputs, nor the algorithm that is going to run inside the block. This is performed in the experiment definition, which combines dataformats, algorithms and a toolchain together.

As with the datasets, to define more blocks just add more entries into the blocks array:

{
    ...
    "blocks": [
        {
            "inputs": [
                "image",
                "eye_centers"
            ],
            "synchronized_channel": "train",
            "name": "cropping_rgb_train",
            "outputs": [
                "image_cropped"
            ]
        },
        {
            "inputs": [
                "image_cropped"
            ],
            "synchronized_channel": "train",
            "name": "feature_extraction_train",
            "outputs": [
                "feature_vector"
            ]
        }
    ]
    ...
}

Declaration of the connections between the processing blocks

To define a connection between two processing blocks (or one dataset and one processing block), just add one entry into the connections array, with one of the following forms:

{
    "from": "block1_name.output_name",
    "to": "block2_name.input_name"
}

or:

{
    "from": "dataset_name.output_name",
    "to": "block_name.input_name"
}

For example:

{
    ...
    "connections": [{
            "from": "cropping_rgb_train.image_cropped",
            "to": "features_extraction_train.image_cropped"
        }
    ],
    "blocks": [
        {
            "inputs": [
                "image",
                "eye_centers"
            ],
            "synchronized_channel": "train",
            "name": "cropping_rgb_train",
            "outputs": [
                "image_cropped"
            ]
        },
        {
            "inputs": [
                "image_cropped"
            ],
            "synchronized_channel": "train",
            "name": "feature_extraction_train",
            "outputs": [
                "feature_vector"
            ]
        }
    ]
    ...
}

Several important things to note:

  • The names of the connected output and input don’t need to be the same. Use whatever make sense in the context of each block

  • An output can be connected to several inputs

  • An input can only be connected to one output

  • The names of the blocks and of the datasets must be unique in the toolchain

Declaration of the outputs to use as results

To declare that a particular processing block output produces the result of the toolchain (or a part of it), just add one entry into the analyzers field, with the following form:

{
    ...
    "analyzers": [
            {
                "inputs": [
                    "scoring_dev_scores",
                    "scoring_test_scores"
                ],
                "synchronized_channel": "probes",
                "name": "analysis"
            }
        ]
    ...
}

The field inputs lists the results, while the field synchronized_channel indicates the dataset against which to automatically perform the loop as for any regular toolchain block.

The data written on those inputs will be used to display results and plots on the web interface.

Putting it all together: a complete example

The following example describes the toolchain visible at Fig. 8, a complete toolchain that:

  1. train an Eigenfaces face recognition system on one set of images (train)

  2. enroll client-specific models on another set of images (templates)

  3. test these models using samples from a third set of images (probes)

Note

A toolchain is still not executable, since it contains no mention of the algorithms that must be used in each processing block, as well as the database to use.

{
    "datasets": [
        {
            "outputs": [
                "image"
            ],
            "name": "train"
        },
        {
            "outputs": [
                "template_id",
                "client_id",
                "image"
            ],
            "name": "templates"
        },
        {
            "outputs": [
                "probe_id",
                "client_id",
                "template_ids",
                "image"
            ],
            "name": "probes"
        }
    ],
    "blocks": [
        {
            "inputs": [
                "image"
            ],
            "synchronized_channel": "train",
            "name": "linear_machine_training",
            "outputs": [
                "subspace"
            ]
        },
        {
            "inputs": [
                "image",
                "template_id",
                "subspace"
            ],
            "synchronized_channel": "templates",
            "name": "template_builder",
            "outputs": [
                "projections"
            ]
        },
        {
            "inputs": [
                "image",
                "probe_id",
                "subspace"
            ],
            "synchronized_channel": "probes",
            "name": "probe_builder",
            "outputs": [
                "projections"
            ]
        },
        {
            "inputs": [
                "templates_client_id",
                "templates_template_id",
                "template_builder_projections",
                "probes_client_id",
                "probes_probe_id",
                "probe_builder_projections",
                "probes_template_ids"
            ],
            "synchronized_channel": "probes",
            "name": "scoring",
            "outputs": [
                "scores"
            ]
        }
    ],
    "analyzers": [
        {
            "inputs": [
                "scores"
            ],
            "synchronized_channel": "probes",
            "name": "analysis"
        }
    ],
    "connections": [
        {
            "to": "linear_machine_training.image",
            "from": "train.image",
            "channel": "train"
        },
        {
            "to": "template_builder.image",
            "from": "templates.image",
            "channel": "templates"
        },
        {
            "to": "template_builder.template_id",
            "from": "templates.template_id",
            "channel": "templates"
        },
        {
            "to": "template_builder.subspace",
            "from": "linear_machine_training.subspace",
            "channel": "train"
        },
        {
            "to": "probe_builder.image",
            "from": "probes.image",
            "channel": "probes"
        },
        {
            "to": "probe_builder.probe_id",
            "from": "probes.probe_id",
            "channel": "probes"
        },
        {
            "to": "probe_builder.subspace",
            "from": "linear_machine_training.subspace",
            "channel": "train"
        },
        {
            "to": "scoring.templates_client_id",
            "from": "templates.client_id",
            "channel": "templates"
        },
        {
            "to": "scoring.templates_template_id",
            "from": "templates.template_id",
            "channel": "templates"
        },
        {
            "to": "scoring.template_builder_projections",
            "from": "template_builder.projections",
            "channel": "templates"
        },
        {
            "to": "scoring.probes_client_id",
            "from": "probes.client_id",
            "channel": "probes"
        },
        {
            "to": "scoring.probes_probe_id",
            "from": "probes.probe_id",
            "channel": "probes"
        },
        {
            "to": "scoring.probe_builder_projections",
            "from": "probe_builder.projections",
            "channel": "probes"
        },
        {
            "to": "scoring.probes_template_ids",
            "from": "probes.template_ids",
            "channel": "probes"
        },
        {
            "to": "analysis.scores",
            "from": "scoring.scores",
            "channel": "probes"
        }
    ]
}
